A pulley is one of the most fundamental mechanical components used in many applications. It is essentially a wheel with a groove around its circumference, through which a rope, belt, or chain runs to lift or move loads. Pulleys are widely used in various industries, including construction, transportation, and manufacturing, for tasks ranging from simple lifting to complex mechanical operations. In this article, we will explore the different types of pulleys, their uses, and tips for choosing the right pulley for your needs.





What is a Pulley?



A pulley is a simple machine that can change the direction of a force or reduce the amount of force required to move a load. It consists of a wheel with a groove around its edge, and it is used with a rope, belt, or chain to transmit mechanical power. When force is applied to one side, the pulley helps to move or lift a load on the other side, either directly or indirectly.



Pulleys are widely used because they make work easier by altering the direction of applied force and distributing the load more efficiently. They are used in cranes, hoists, elevators, and many other mechanical systems.



Types of Pulleys



There are several types of pulleys based on how they are used and the way they function. Understanding the different types can help you determine which one best suits your project or application.



Fixed Pulley

1. Description: A fixed pulleyis the most basic type, where the pulley is attached to a stationary point. The load is moved by pulling on a rope or cable that runs through the groove of the pulley. This type of pulley does not change the force needed but simply changes the direction of the applied force.
2. Use: Fixed pulleys are used in applications where lifting the load directly is not possible, like flagpoles or simple cranes.
3. Example: A flagpole uses a fixed pulley to raise and lower the flag.



Movable Pulley

1. Description: A movable pulleyis attached to the load itself and moves along the rope as the load is lifted. This type of pulley reduces the amount of force needed to lift a load, as it effectively distributes the weight of the load between the pulley and the user.
2. Use: Movable pulleys are often used in systems where lifting a heavy load with less effort is necessary.
3. Example: A construction crane uses a movable pulley to lift heavy materials with less effort.



Compound Pulley

1. Description: A compound pulleycombines both fixed and movable pulleys in a single system. This setup reduces the amount of force required to move a load and can lift very heavy objects with minimal effort. It is commonly used in large lifting applications like elevators, mining, or mechanical winches.
2. Use: Compound pulleys are used in large-scale lifting operations, such as in elevators or construction sites.
3. Example: In an industrial crane, a compound pulley system is used to lift extremely heavy loads with ease.



Block and Tackle Pulley

1. Description: A block and tackle pulleyconsists of multiple pulleys (both fixed and movable) arranged in such a way that it greatly reduces the effort needed to lift a load. This system is used for mechanical advantage in lifting very heavy loads.
2. Use: Commonly used in shipyards, construction sites, and mechanical hoists.
3. Example: A block and tacklesystem is often found in marine applications, such as hoisting sails on a boat.



Snatch Pulley

1. Description: A snatch pulleyis a type of movable pulley that can be detached and moved along the rope without requiring the rope to be completely unraveled. This is particularly useful for changing the direction of a load without losing tension.
2. Use: Snatch pulleys are ideal for temporary setups where the direction of the force needs to be changed quickly.
3. Example: A snatch pulley is often used in off-road vehicles for winching.



Applications of Pulleys



Pulleys have a wide range of applications across many industries, and their versatility makes them indispensable in mechanical systems. Some common applications include:



Lifting and Hoisting

1. Pulleys are frequently used in cranes, winches, and other lifting mechanisms to move heavy objects vertically. They reduce the amount of force needed and make the process more efficient.



Transportation of Materials

1. Pulleysare used in conveyors, elevators, and ski lifts to move materials or people over long distances, often in industrial settings or amusement parks.



Mechanical Advantage in Machines

1. In many machines, pulleys are used to transfer rotational motion and increase torque. They play a critical role in the operation of various mechanical devices, such as engines and pumps.



Power Transmission

1. Pulleys are also used in power transmission systems where belts or ropes are driven by pulleys to transmit power from one shaft to another. This is a common use in agricultural machines, factory machinery, and even home appliances.



Entertainment and Stage Productions

1. Pulleys are used in the entertainment industry to move props, backdrops, and curtains during performances. The ability to lift heavy items effortlessly makes pulleys crucial in stage production.

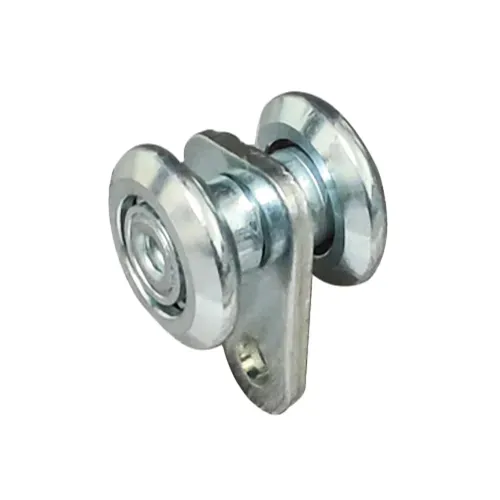

Choosing the Right Pulley for Your Application



When selecting a pulley for your system, consider the following factors to ensure it meets your specific needs:



Load Capacity

1. Ensure that the pulley you select can handle the weight of the load you intend to move. Different pulleys are designed to support different load capacities, so check the specifications carefully.



Material

1. Pulleys come in various materials, including steel, aluminum, brass, and plastic. The material should be chosen based on the environment in which the pulley will be used. For example, steel pulleysare ideal for heavy-duty lifting, while aluminum pulleys are lighter and more suitable for less demanding tasks.



Size and Configuration

1. The diameter of the pulley, the groove depth, and the type of rope or cable that will run through it all need to be considered. Ensure that the pulley you choose is compatible with the ropes or belts in your system.



Efficiency

1. The type of pulley system you use will affect the efficiency of your setup. For high-efficiency applications, a compound pulleyor block and tackle system may be the best choice.



Durability

1. Pulleys are often subjected to wear and tear, so selecting a pulley with good durability is important for long-term reliability. Look for pulleys that are made from corrosion-resistant materials or those designed for specific environments (such as marine pulleys).



Finding Pulleys: Where to Buy



If you’re looking to purchase pulleys, there are various pulley suppliers available that provide a wide range of options for different applications. When purchasing pulleys, consider checking their specifications to ensure they meet your operational requirements. Look for suppliers with good reputations for quality products and reliable customer service to ensure you get the right pulley for your needs.



You can easily find pulleys for sale through online marketplaces or specialized suppliers that deal in mechanical parts. Whether you need pulleys for industrial machinery, lifting systems, or transportation applications, a wide selection is available to meet your needs.



Pulleys are indispensable mechanical components that come in a wide variety of types, from simple fixed pulleys to complex block and tackle systems. They help distribute weight, change direction, and make lifting and moving loads easier. Understanding the types of pulleys, their functions, and the factors to consider when choosing the right one will help you optimize your systems for efficiency and durability.



Whether you are working on construction projects, industrial machinery, or even theater productions, the right pulley can make a significant difference in the effectiveness of your operations. By purchasing pulleys from reputable pulley suppliers, you can ensure that your systems run smoothly and efficiently for years to come.
